Pallet Rack Upright Frames: A Key Component of Warehouse Storage Systems
Pallet rack upright frames are a fundamental part of pallet racking systems used in warehouses, distribution centers, and industrial storage facilities. These vertical structures serve as the backbone of racking systems, supporting horizontal beams that create multiple storage levels for palletized goods. Designed to maximize space utilization and improve warehouse organization, upright frames play a critical role in ensuring both safety and efficiency in material handling operations.
Construction and Material

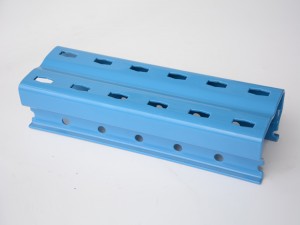

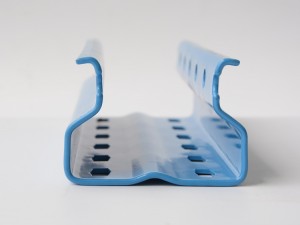

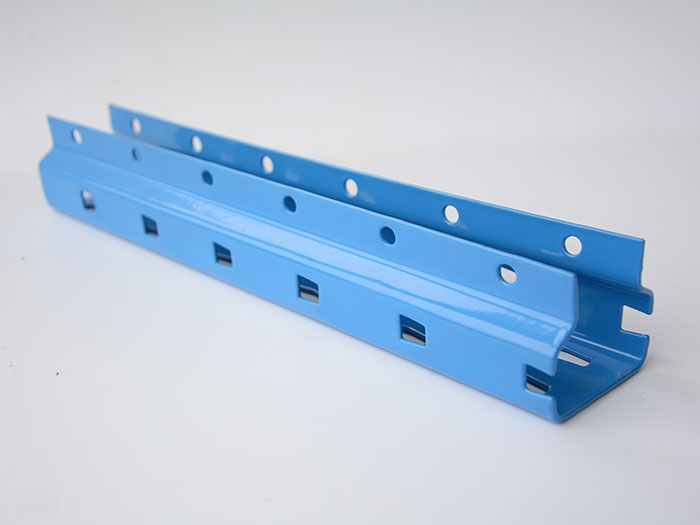

Upright frames are typically constructed from high-strength steel, engineered to withstand heavy loads and harsh warehouse environments. They feature a series of punched holes along their length, allowing beams to be adjusted to various heights based on specific storage needs. The frames are available in different heights, depths, and load-bearing capacities to accommodate various pallet sizes and weight requirements.
Most upright frames are coated with powder paint or galvanized finishes to enhance durability and resistance to corrosion, especially in environments where moisture, chemicals, or temperature fluctuations are present. The design often includes diagonal and horizontal bracing, which provides additional stability and structural integrity.
Types of Pallet Rack Upright Frames
Bolted Upright Frames – These frames are assembled using bolts and nuts, making it easier to replace damaged components without the need for welding. They are commonly used in high-traffic warehouses where repairs and modifications may be necessary over time.
Welded Upright Frames – These frames are pre-welded for added strength and durability. They provide higher structural integrity compared to bolted frames and are ideal for permanent racking installations that require long-term stability.
Key Considerations for Pallet Rack Upright Frames
Load Capacity – Upright frames must be selected based on the weight of the products being stored, including the weight distribution across multiple levels. Overloading a racking system can lead to structural failures and safety hazards.
Frame Height and Depth – The height and depth should match the warehouse’s ceiling clearance, forklift reach, and pallet dimensions. Standard frame heights range from 8 feet to over 30 feet.
Beam Compatibility – Upright frames must be compatible with horizontal beams to ensure a secure and stable connection. Different manufacturers may have proprietary beam-to-frame connection styles.
Warehouse Layout and Space Utilization – Proper planning of aisle width, forklift access, and rack spacing is essential for optimizing workflow and maximizing storage density.
Safety and Maintenance of Pallet Rack Upright Frames
Inspecting for Bent or Damaged Frames – Collisions with forklifts or improper loading can cause frame damage, which should be addressed immediately to prevent system failure.
Ensuring Proper Beam Connection – Loose or improperly connected beams can compromise the stability of the entire racking system.
Using Protective Accessories – Column protectors, end guards, and safety clips help prevent damage and enhance the longevity of the racking system.
Following Load Capacity Limits – Exceeding weight limits can result in rack collapse, leading to inventory loss and potential workplace injuries.
