Electric Drawer-type Sheet Metal Storage Systems

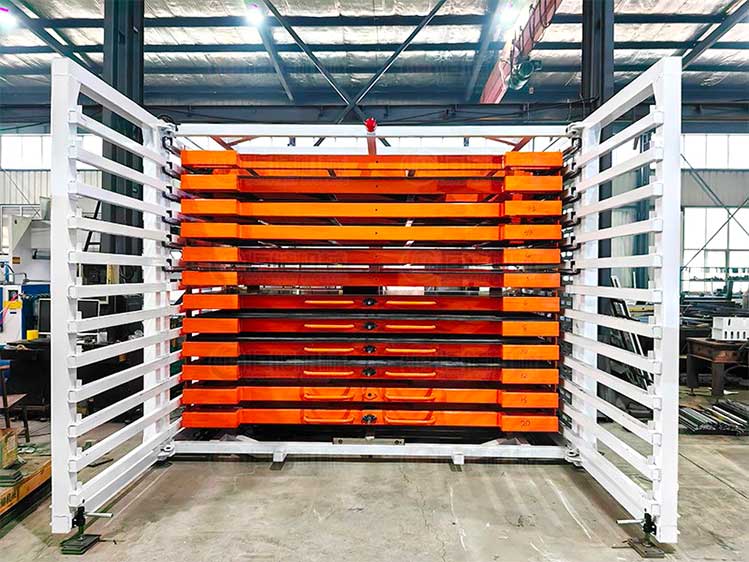

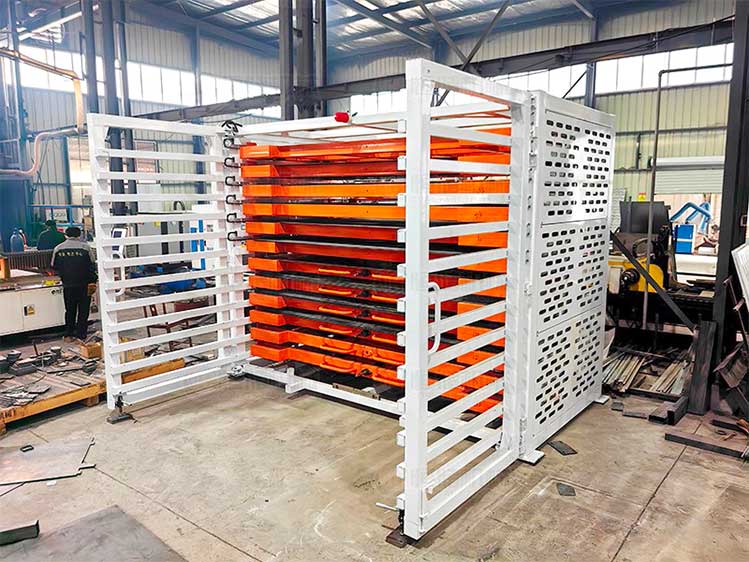

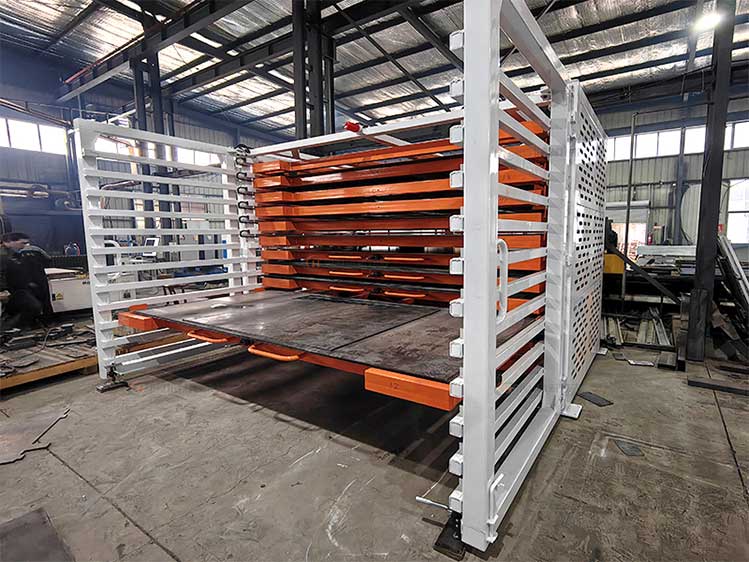

An Electric Drawer-type Sheet Metal Storage System is a mechanized storage solution designed to organize and store large, flat sheets of metal. It features a series of horizontal drawers or compartments that can be electrically operated to slide in and out, allowing for easy access to the metal sheets without the need for manual lifting or rearrangement.
The system is typically used in industrial environments where large quantities of sheet metal need to be stored efficiently. Its primary function is to provide safe, organized, and space-saving storage while ensuring quick access to the materials. By automating the movement of the drawers, the system reduces manual labor and increases efficiency in retrieving or storing heavy sheets.
Features of Electric Drawer-type Sheet Metal Storage Systems
Electric Operation:
The system uses an electric motor or other powered mechanisms to automate the movement of drawers, making it easier to access heavy sheet metal with minimal manual effort. This can reduce labor intensity and increase efficiency, especially in high-volume industrial settings.
Drawer-Type Design:
The storage compartments are structured like drawers that slide in and out. Each drawer can hold multiple sheets of metal, stacked horizontally, allowing operators to retrieve specific materials without having to lift or move other items.
Sheet Metal Storage:
It is specifically designed for sheet metals, which are flat and typically quite large and heavy. This system ensures that sheets are stored flat to prevent bending or damage, while also optimizing the use of vertical and horizontal space.
Advantages of Electric Drawer-type Sheet Metal Storage Systems
Space-saving:
These systems can store a large amount of sheet metal in a compact space.
Efficient access:
Electric mechanisms allow operators to quickly retrieve or store metal sheets without physical strain.
Improved safety:
Automating the retrieval process reduces the risk of accidents related to manual handling of heavy or sharp materials.
Material protection:
Storing metal in drawers helps prevent damage caused by mishandling or improper storage methods.
Electric Drawer-type Sheet Metal Storage Systems parameters
| Aceally Storage Configuration Table (Board Class) Drawer type Tray Storage Shelf | |||||
| Project model | AC-B3015-63 | AC-B4015-63 | AC-B4020-65 | AC-B6020-66 | Note: Device colors can be customized |
| Load (single layer) | 3t | 3t | 5t | 6t | Customizable |
| Plate size mm | 3000×1500 | 4000×1500 | 4000×2000 | 6000×2000 | |
| &# 9; Number of layers | 5+1 | ||||
| The available height of the partition layer is mm | ≤ 220 | ||||
| Width when door is opened mm | 3515 | 4015 | |||
| External dimensions | 3505x2280x2000 | 4505x2280x2000 | 4505x2280x2500 | 6505x2280x2500 | Determine based on the size of the partition layer |
| (length x height x width) mm | |||||
| Drawer movement method | Integrated pull-out type | ||||
| Ground clearance height of the bottom layer | 355 | ||||
| Top floor height | &# 9; 2195 | 2250 | Determine based on floor height | ||
| Depth pad height | 60 | Not standard, customizable height | |||
| Model description: AC: Aceally Storage B: Board type | |||||
| Digital description: For example, HC-B3015-633 meters x 1.5 meters, 6 layers, 3 tons of board | |||||
