Automated Pallet Storage and Retrieval System

Automated Pallet Storage and Retrieval System is an efficient warehousing solution that uses automated equipment (such as stackers, conveyor lines, shuttles) and software control (WMS/WCS) to achieve intelligent storage, precise positioning, and rapid access to pallets. The system optimizes space utilization, supports high-density warehouses, reduces manual intervention, improves operational efficiency and inventory management accuracy, and is suitable for manufacturing, cold chain, e-commerce and other scenarios, ensuring real-time cargo tracking, standardized processes, and minimized costs.

Storage Height: 5 - 30 meters

Load per Unit: 500 - 1500 kg/pallet

Storage Depth: Single-deep / Double-deep

Pallet Dimensions: 1200×1000 mm / 1200×800 mm (customizable)

Send email to us Download as PDF

Product Detail

Product Tags

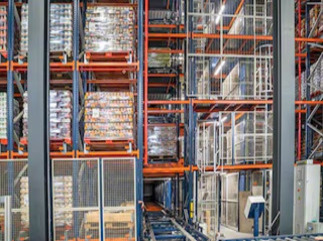

The Automated Pallet Storage and Retrieval System (AS/RS) is a high-performance, computer-controlled solution designed for the automatic handling, storage, and retrieval of palletized goods. Integrating stacker cranes, shuttles, conveyors, and intelligent software, AS/RS greatly improves warehouse space utilization, operational efficiency, and inventory accuracy, making it a key component of modern intelligent warehousing.

Materials

All structural and operational components are built using premium-grade materials to ensure safety, reliability, and durability:

Structural Frame:

High-strength cold-rolled steel (Q235/Q345)

Powder-coated surface for corrosion and rust resistance

Rails & Guideways:

Manganese steel or carbon steel

Precision-machined for smooth and stable movement

Pallet Types:

Plastic, wooden, or steel pallets, customizable based on cargo

Control Systems:

Industrial-grade PLCs, sensors, VFDs, and embedded industrial PCs

Technical Specifications (Customizable)

Item Specification Range

Throughput Up to 100 cycles/hour

Control System WCS + WMS integration

Safety Features Photoelectric sensors, emergency stop, auto-alarm systems

System Advantages

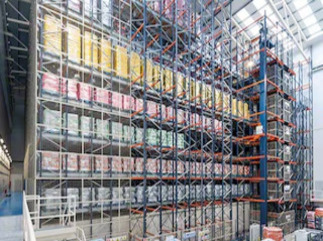

Maximized Space Utilization

Vertical, high-density racking significantly boosts storage capacity compared to traditional shelving systems.

High Operational Efficiency

Automated equipment operates 24/7, speeding up inbound and outbound processes with minimal human involvement.

Reduced Labor & Costs

Minimizes manpower requirements, lowers labor costs, and reduces the risk of product damage or human error.

Real-time Inventory Visibility

Integrated with Warehouse Management System (WMS) for accurate, real-time inventory tracking and reporting.

Enhanced Safety & Stability

Equipped with multiple safety systems to ensure the protection of personnel, goods, and equipment.

Industry Applications

Warehousing & Logistics Centers

Cold Chain Storage (Refrigerated/Frozen)

Pharmaceutical Warehouses

Automotive Parts & Manufacturing Facilities

E-commerce Fulfillment Centers

Chemical & Hazardous Goods Storage (with explosion-proof options)

Optional Features & System Extensions

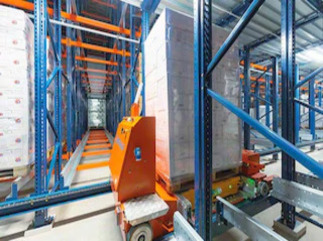

Radio Shuttle System

Multi-layer Shuttle (Multi Shuttle)

Automated Conveyor System

Auto Identification (RFID, Barcode Scanning)

AGV/AMR Integration for Automated Inbound/Outbound

We offer complete AS/RS solutions, including customized design, installation, commissioning, and after-sales support. Whether you are upgrading an existing warehouse or building a new smart logistics center, we can tailor the system to your specific needs.
